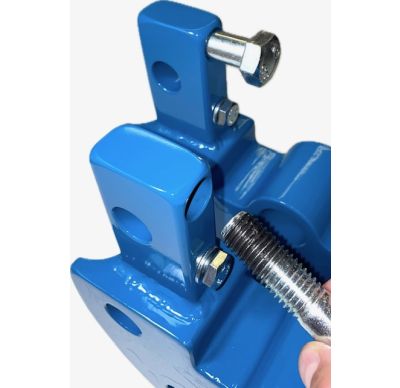

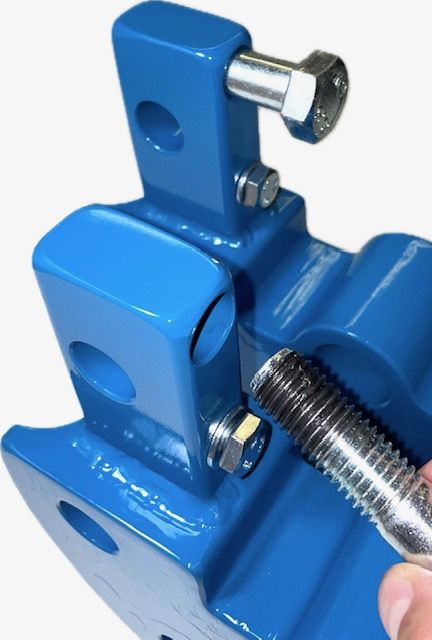

A Tubela Model 3 Tubebender 180deg Former and Guide set.
Click the drop down boxes below to choose Size and Radii.
*If a size or radius is not listed, and you have a 171 to choose from, then we can make it for you. Contact us for information.
Made in the UK 🇬🇧
In Stock
From £154.99 inc. VAT

From £129.16 exc. VAT
Click here to view Model 3 tube bender TOOLING & accessories

- Size:
- Former Radii:
Qty:
- -
- +
This item is out of stock
Add to Cart

Description
Specification
Downloads
Reviews
FAQs

Description

Made in the UK Tubela Model 3, or JD2 Model 3 Tubebender compatible 180deg Former and Guide set. OD (Outside Diameter), Gas (NB), CHS (Circular Hollow Section. *Check tube min/max thickness in the Specification tab.

For Square sizes see here.

In each set you receive Tooling either made by Tubela**:

1 x 180deg Former with an 1"OD centre Pin hole (unless otherwise stated in the description) for your chosen size. (Each Tubela Former is precision CNC machined from 355 grade Steel billets making them very durable).

1 x Guide block with Inserts, for your chosen size. (Inserts are a durable alloy which avoids marking your tube).

1 x Tube Strap, for your chosen size.

1 x Angle Indicator rod.

* if a Former set is not listed as in stock then please call us to check latest levels.

PLEASE READ the Specifications Tab, especially the minimum tube wall thickness each Former size can bend.

** Tubela make our own Tooling for this excellent tube bender. *If a size or radius is not listed, then we can make it. Contact us for information.

** to bend Aluminium you will need our Acetal Inserts see here or a Thin-Walled Ali Bending Kit see here. Please contact us to order.

Specification

Specification

The Model 3’s bending capacity is: 1/2"OD (0.035”min (0.9mm min) wall) to 2"OD (0.095”min (2.4mm min) wall) Steel Tube, or 1/2"NB (Sch40 min) to 1"1/2NB (Sch40 min) Steel Pipe diameter.

Former Radii is the CLR or Centre Line Radius of the bend.

** to bend Aluminium you will need our Acetal Inserts see here or a Thin-Walled Ali Bending Kit see here. Please contact us to order.

FORMERS (Dies) Round Tube (radii in inches & max angle). Items in bold type are stocked. Others special order.	Minimum Wall Thickness Mild Steel/ERW, T45, 4130
M3B Round Tube Former Set - 1/2 " (2.25-180)	0.035" (0.9mm)
M3B Round Tube Former Set - 1/2 " (3-180)	0.035" (0.9mm)
M3B Round Tube Former Set - 5/8" (2.25-180)	0.049" (1.2mm)
M3B Round Tube Former Set - 5/8" (3-180)	0.049" (1.2mm)
M3B Round Tube Former Set - 3/4" (2.25-180)	0.058" (1.5mm)
M3B Round Tube Former Set - 3/4" (3-180)	1.5mm
M3B Round Tube Former Set - 3/4" (3.5-180)	1.5mm
M3B Round Tube Former Set - 7/8" (2.25-180)	2.4mm
M3B Round Tube Former Set - 7/8" (3-180)	1.5mm
M3B Round Tube Former Set - 7/8" (4.5-180)	1.5mm
M3B Round Tube Former Set - 7/8" (5.5-180)	1.5mm
M3B Round Tube Former Set - 1" (3-180)	1.5mm
M3B Round Tube Former Set - 1" (3.5-180)	1.5mm
M3B Round Tube Former Set - 1" (4.5-180)	1.5mm

M3B Round Tube Former Set - 1 1/8" (3.5-180)	0.083" (2.1mm)
M3B Round Tube Former Set - 1 1/8" (4.5-180)	1.5mm
M3B Round Tube Former Set - 1 1/8" (5.5-180)	1.5mm

M3B Round Tube Former Set - 1 1/4" (3.5-180)	2.1mm
M3B Round Tube Former Set - 1 1/4" (4.5-180)	1.5mm
M3B Round Tube Former Set - 1 1/4" (5.5-180)	1.5mm

M3B Round Tube Former Set - 1 3/8" (4.5-180)	0.095" (2.4mm)
M3B Round Tube Former Set - 1 3/8" (5.5-180)	1.5mm
M3B Round Tube Former Set - 1 3/8" (6.5-180)	1.5mm

M3B Round Tube Former Set - 1 1/2" (4.5-180)	2.4mm
M3B Round Tube Former Set - 1 1/2" (5.5-180)	2.1mm
M3B Round Tube Former Set - 1 1/2" (6.5-180)	1.5mm
M3B Round Tube Former Set - 1 1/2" (7.5-180)	1.5mm
M3B Round Tube Former Set - 1 5/8" (5.5-180)	2.1mm
M3B Round Tube Former Set - 1 5/8" (6.5-180)	2.1mm
M3B Round Tube Former Set - 1 5/8" (7.5-180)	2.1mm
M3B Round Tube Former Set - 1 3/4" (5.5-180)	2.4mm
M3B Round Tube Former Set - 1 3/4" (6.5-180)	2.1mm
M3B Round Tube Former Set - 1 3/4" (7.5-180)	2.1mm
M3B Round Tube Former Set - 1 7/8" (6.5-180) M3B Round Tube Former Set - 1 7/8" (7.5-180)	2.4mm 2.1mm

M3B Round Tube Former Set - 2" (6.5-180)	3mm
M3B Round Tube Former Set - 2" (7.5-180)	2.4mm

Nominal Bore (N.B.) CHS Pipe Formers (radii inch & max angle)
M3B Pipe Former Set - 1/2" Pipe, .840" OD (3 (76mm)-180)	1.6mm
M3B Pipe Former Set - 1/2" Pipe, .840" OD (3.5 (89mm)-180)	1.6mm
M3B Pipe Former Set - 1/2" Pipe, .840" OD (4.5 (114mm)-180)	1.6mm
M3B Pipe Former Set - 1/2" Pipe, .840" OD (5.5 (140mm)-180)	1.6mm
M3B Pipe Former Set - 3/4" Pipe, 1.050" OD (3 (76mm)-180)	1.6mm
M3B Pipe Former Set - 3/4" Pipe, 1.050" OD (3.5 (89mm)-180)	1.6mm
M3B Pipe Former Set - 3/4" Pipe, 1.050" OD (4.5 (114mm)-180)	1.6mm
M3B Pipe Former Set - 3/4" Pipe, 1.050" OD (5.5 (140mm)-180)	1.6mm

M3B Pipe Former Set - 1" Pipe, 1.315" OD (3.5 (89mm)-180)	2.1mm
M3B Pipe Former Set - 1" Pipe, 1.315" OD (4.5 (114mm)-180)	1.6mm
M3B Pipe Former Set - 1" Pipe, 1.315" OD (5.5 (140mm)-180)	1.6mm
M3B Pipe Former Set - 1" Pipe, 1.315" OD (6.5 (165mm)-180)	1.6mm

M3B Pipe Former Set - 1 1/4" Pipe, 1.660" OD (3.5 (89mm) -180) M3B Pipe Former Set - 1 1/4" Pipe, 1.660" OD (4.5 (114mm)-180)	3.0mm 2.4mm
M3B Pipe Former Set - 1 1/4" Pipe, 1.660" OD (5.5 (140mm)-180)	2.4mm
M3B Pipe Former Set - 1 1/4" Pipe, 1.660" OD (6.5 (165mm)-180)	2.1mm
M3B Pipe Former Set - 1 1/4" Pipe, 1.660" OD (7.5 (190mm)-180)	2.1mm
M3B Pipe Former Set - 1 1/2" Pipe, 1.900" OD (5.5 (140mm)-180)	3.7mm
M3B Pipe Former Set - 1 1/2" Pipe, 1.900" OD (6.5(165mm)-180)	2.8mm
M3B Pipe Former Set - 1 1/2" Pipe, 1.900" OD (7.5 (190mm)-180)	2.4mm

Note: this tooling is very heavy due to the Formers being machined from Steel billets. For example an 1" x 4.5" set weighs 12kg and a 2" x 6.5" set weighs 27kg. Carriage costs do reflect this.
